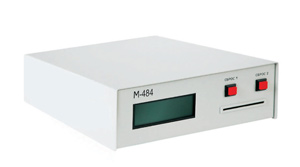

THE M-484K CRYPTOGRAPHIC PROTECTION COMPLEX
The device of cryptographic protection of information M-484K has a certificate of compliance issued by the Central Agency for Certification of the Federal Security Service (CBS FSB) and is intended for use in data transmission networks with different levels of information confidentiality.After authentification of a user by means of the Russian Smart Card (RIK) and password, the M-484K can provide: encryption of information transmitted through a communication channel between objects of the communication network in the gamming mode (with feedback), according to the Russian National Standard (GOST) 28147-89 with a speed of up to 115 Kb/s in duplex mode; transparency of interaction between the ending data equipment (РС) and the data transmission device (modem) at an established connection with use of a fixed set of AT-commands and physical signals of the interface RS-232c.
Basic technical specifications:
| Cryptographic algorithm | GOST 28147-89 |
| Confidentiality level of information in use | Full range |
| Key series change period | 1 year |
| Confidentiality level of equipment | No explicit confidential information |
| Interface for connection of adjacent equipment | RS-232C with support of work through separate and dial-up channels |
| Processing speed | Up to 115 Kb/s |
| Authentication means | RIK, password |
| Interaction with adjacent equipment | Independence of PC software |
| Implementation group | Group 1.1 GOST B 20.39.304 |
| Physical volume | 3.9 l |
| Weight | 2.5 kg |
| Wattage | 8 W |
| Voltage | 220 V |

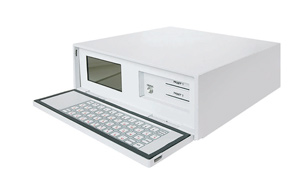

THE CRYPTOGRAPHIC PROTECTION COMPLEX M-529 (RMB)
The Complex is designed to provide protection of information:- In Russian segments of payment systems VISA, MasterCard with use of the Russian cryptographic algorithms which are standard for the Russian Federation an entire protection subsystem is created in such a way as to be interconnected with the protection subsystem of payment systems VISA and MasterCard;
- In the system of the mobile bank when exchanging confidential SMS messages between the client and the bank;
- When performing emission of CHIP-cards of EMW Standard;
- Provides compatibility with the system of commands of module HSM version 5.05.
The RMB distinctive features:
- Domestic cryptographic standards implemented in the RMB provide an additional level of protection implemented in addition to the use of foreign cryptographic algorithms;
- Use of the RMB in the payment system requires no additional changes in the software supporting business processes of the payment system;
- Availability of the access separation system for operators to perform critical operations from the security point of view;
- Authentication of actions of operators, maintenance of the registration log-books;
- Implementation of cryptographic algorithms GOST 28147-89, DES, TRIPLE DES on a special hardware platform;
- High rate of processing of payment transactions;
- Provision with keys generated at a special workstation from within the system.
The system is certified by the Central Agency for Certification of the Federal Security Service (CBS FSB).
THE CRYPTOGRAPHIC PROTECTION COMPLEX M-448К-1.1, M-448К-1.2, M-448К-1.3
Devices of cryptographic protection of information M-448К-1.1, M-448К-1.2 and M-448К-1.3 have certificates of compliance issued by the Central Agency for Certification of the Federal Security Service (CBS FSB) and can be used for development and checking of the electronic digital signature, encryption, and protection against falsified data entry in the information systems with different levels of information confidentiality.The products provide cryptographic protection against falsified data entry of information transmitted through open communication channels (channel mode) and information processed in the PC or uploaded to portable carriers (subscription mode).
BASIC TECHNICAL SPECIFICATIONS
| Cryptographic algorithm | Downloaded when in use |
| Confidentiality level of information in use (maximum) | Full range |
| Key series change period | 3 years |
| Confidentiality level of equipment | No explicit confidential information |
| The number of keys in one device | More than 1000 |
| Interface for connection of adjacent equipment | 1. RS-232C with work through separate and dial-up channels (M-448К-1.1) 2. RS-232C with work using protocol PPP (M-448К-1.2) 3. Ethernet 10 Base T with work in IP-network (M-448К-1.3) |
| Processing speed | 1. Up to 64 Kb/s for M-448К-1.1, M-448К-1.2 2. Up to 8Mb/s for M-448К-1.3 |
| End-to-end encryption and electronic digital signature | Available |
| Authentication means | RIK, password |
| Interaction with adjacent equipment | Support programs for OC MC BC 3.0, MS DOS 6.22, MS Windows NT 4.0 for work in subscription and reserved modes |
| Automated remote management and control of the key network, remote key change | Available |
| Functions of confirming key centre of the electronic digital signature | In place |
| Hierarchical management of the key network | Available |
| Implementation group | Groups 1.1, 1.3 |
| Physical volume | 12 l |
| Weight | 7.5 kg |
| Wattage | 15 W |
| Voltage | 220 V |
